Reliable & Scalable BTS Power System for 5G Networks
High Integration
- Rectifier module with monitoring, power distribution and lightning protection.
- Battery module with BMS, power distribution, and lightning protection.
- Flexible combination between rectifiers and batteries for tailored capacity.
Easy Deployment
- Multiple mounting options: pole, wall, etc.
- Plug-and-play with zero manual parameter setting for fastest site turn-up.
- Modular design for fast deployment.
Intelligent Management
- Real-time remote power control.
- Sub-circuit electricity consumption measurement.
- Online expansion capability for growing networks.

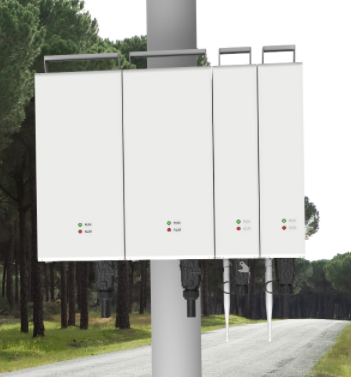

Compact, Lightweight & Easy to Install
High-energy-density batteries and a lightweight design make single-person installation simple. Its compact footprint, modular rectifier-battery pairing, and IP65 rating ensure reliable performance even in remote or harsh outdoor environments.
Zero-Maintenance, Smarter Operations
Stay in control without on-site visits. Built-in remote diagnostics, firmware updates, and automated alerts keep your system running smoothly, while sub-circuit monitoring and easy network expansion make scaling simple. Certified to UL, IEC, and UN38.3 for proven safety.
SPECIFICATION
| Output Power | 2000W |
|---|---|
| Output Voltage | 56.4V |
| Output Current | 3 × 40A |
| Input Voltage | 220V (single-phase) |
| Input Current | 15A |
| Input Current | Bluetooth & mobile APP |
| Communication | RS485/CAN |
| Output Power | 3000W |
|---|---|
| Output Voltage | 56.4V |
| Output Current | 3 × 40A |
| Input Voltage | 220V (single-phase) |
| Input Current | 19A |
| Input Current | Bluetooth & mobile APP |
| Communication | RS485/CAN |
| Rated Voltage | 48V |
|---|---|
| Rated Capacity | 50Ah |
| Voltage Range | 42V- 53.5V |
| Max. Charging & Discharging Current | 50A |
| Parallel Connection | Up to 16 (auto-coding supported) |
| Communication | RS485*2 |
| IP Grade | IP65 |
BTS Power System Applications
Sunergy Technology’s 5G Micro Base Station Power Supply Solution has been successfully deployed across various urban and remote 5G sites. With its rugged design, intelligent energy management, and expandable capacity, telecom operators achieve greater network uptime, improved power efficiency, and significant cost savings.
Complex, critical communication scenarios
Especially in high-density 5G areas like airports, subways, shopping malls, and office buildings.
Remote areas with special power needs
Offering stable, efficient power for reliable equipment operation and continuous communication services, especially during sudden traffic surges.
